Description

Key Features

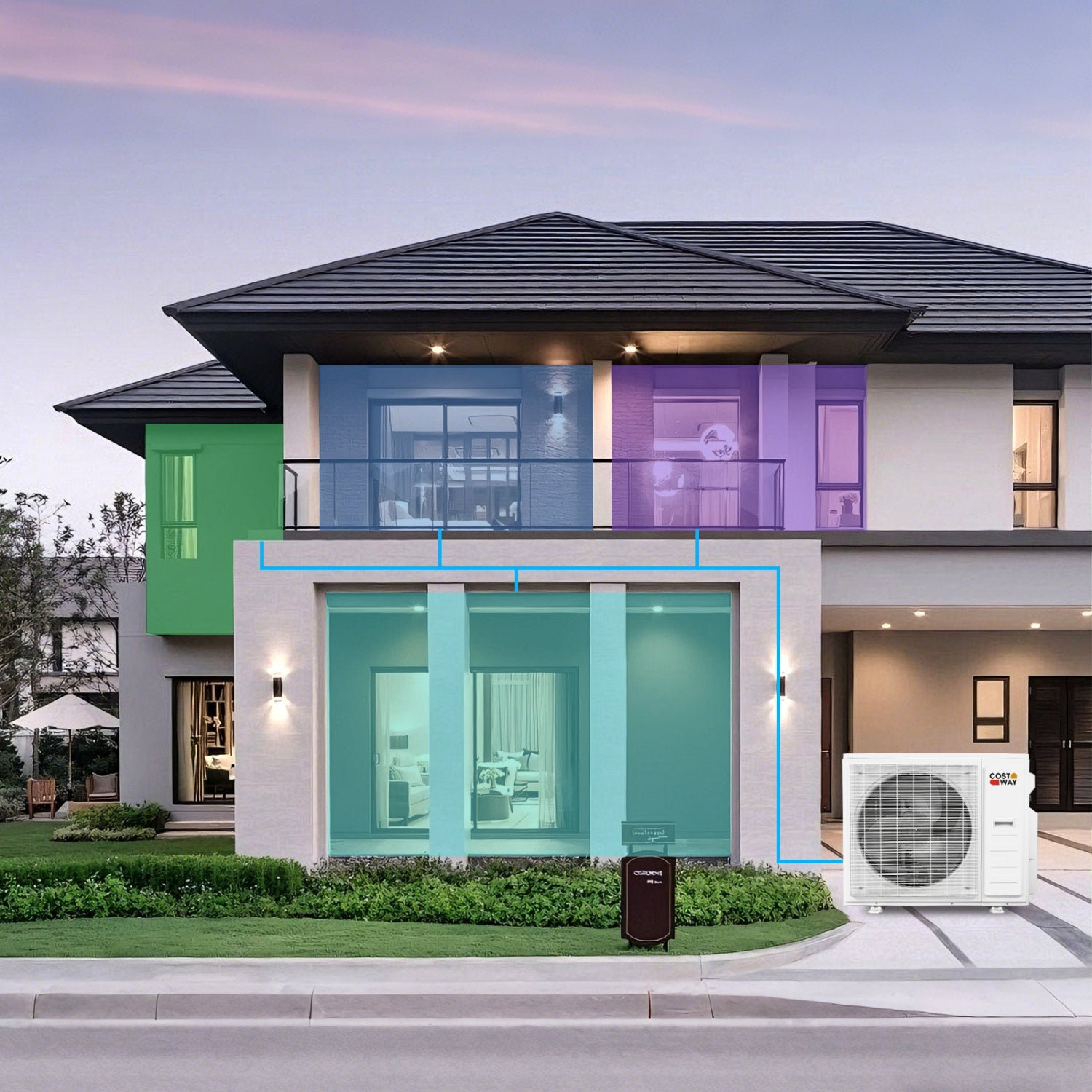

• Powerful whole-home cooling and heating for 3 zones

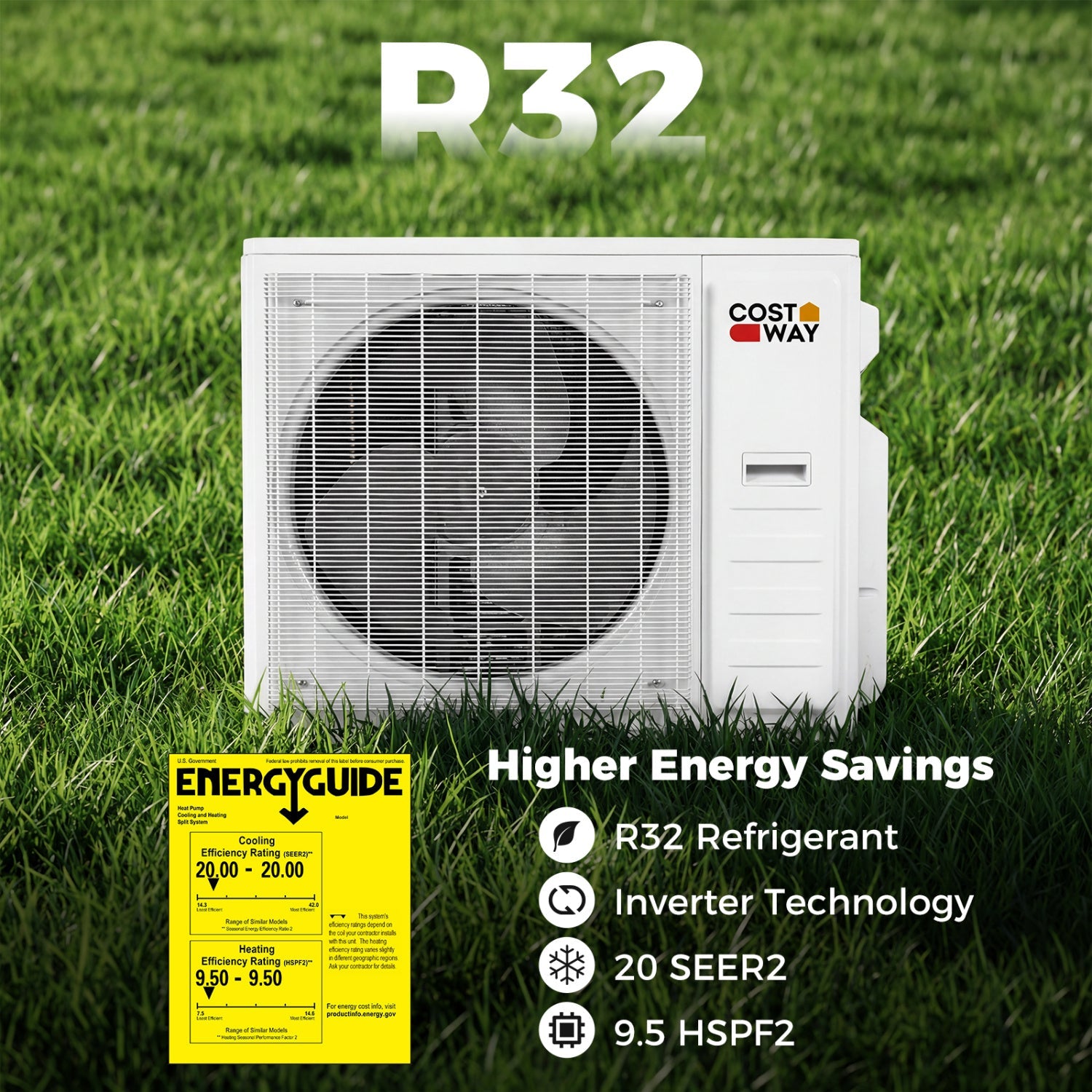

• 20 SEER2 and inverter technology ensure high energy efficiency

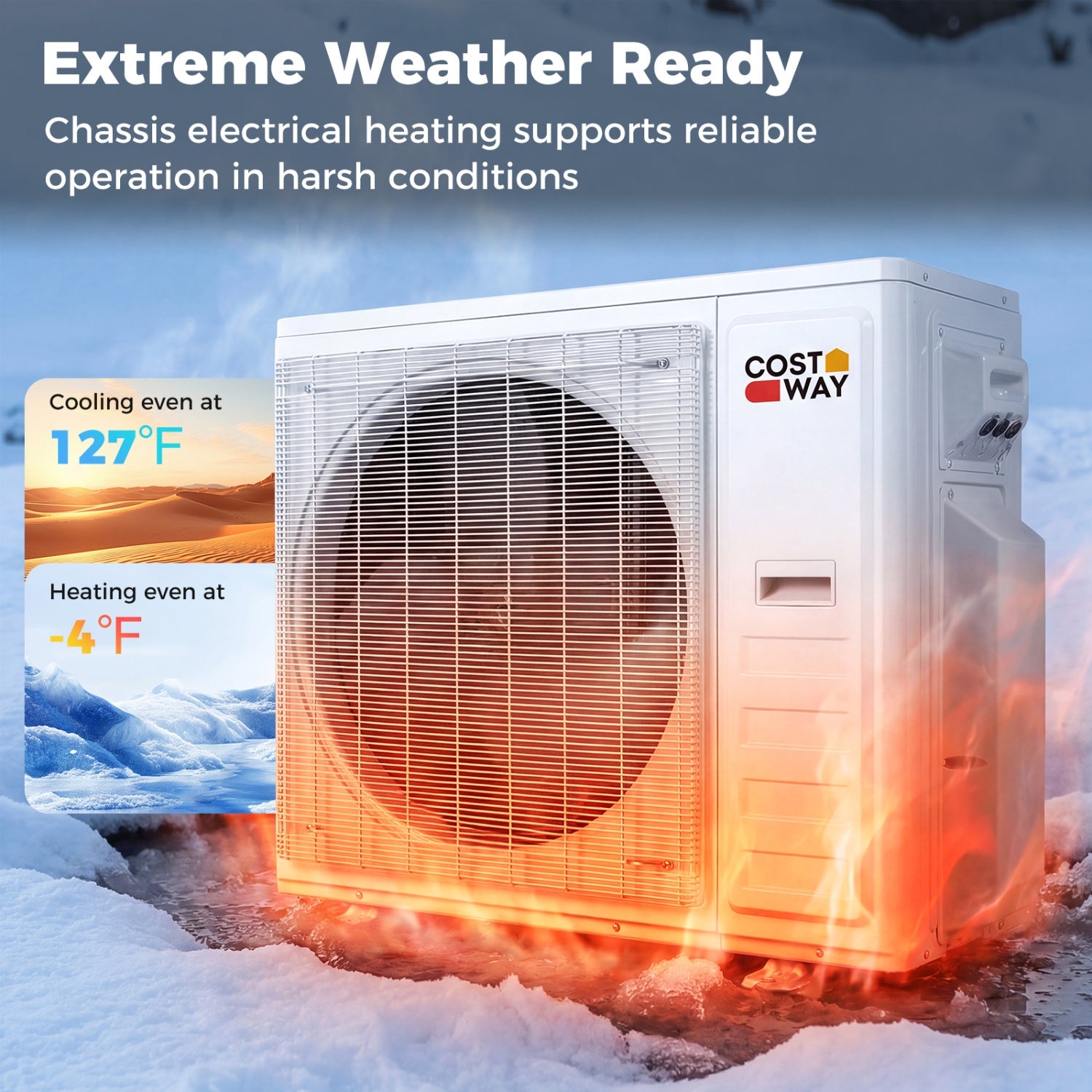

• Outdoor unit with chassis heating for reliable cold-weather operation

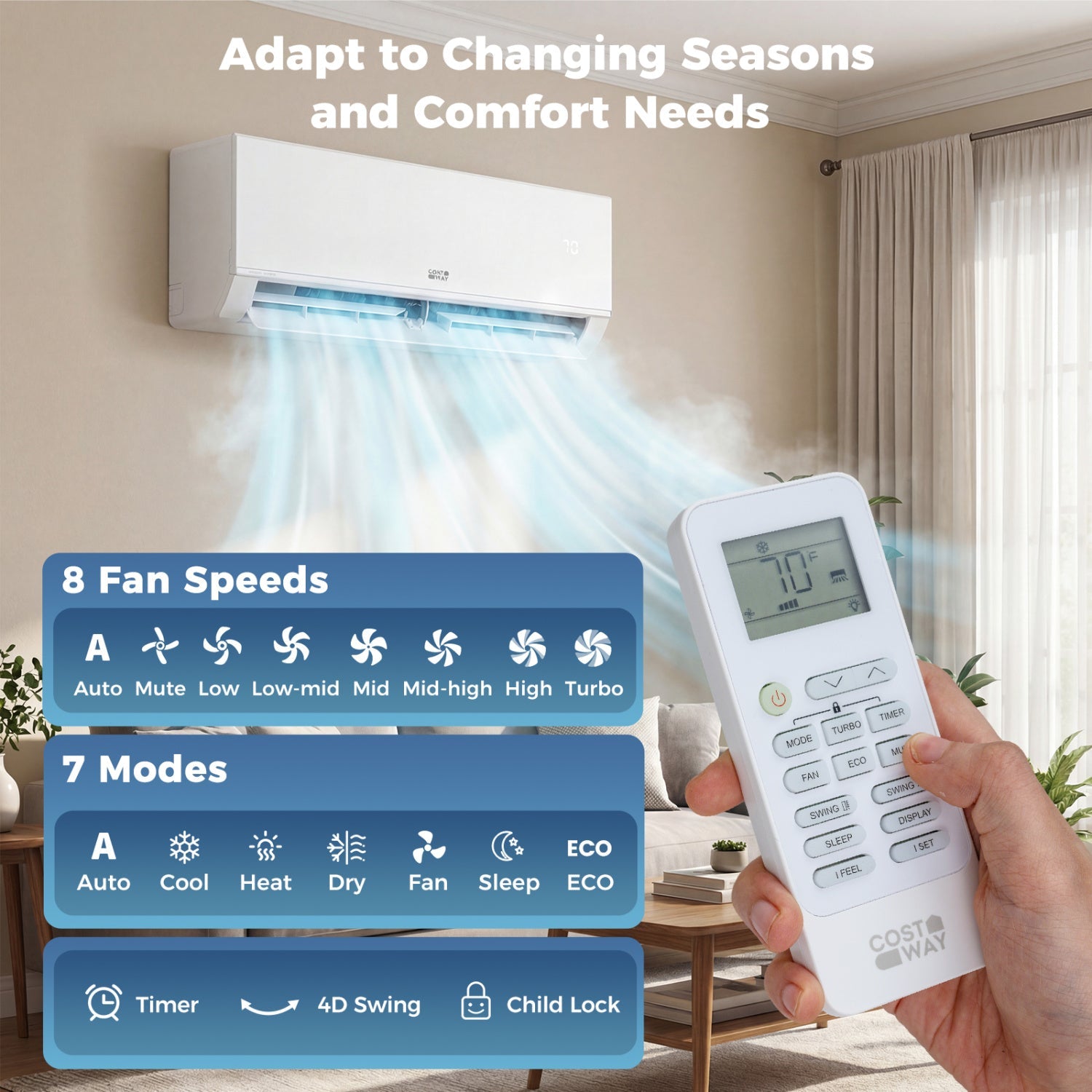

• Choose from 7 operating modes and 8 fan speeds
• Easily control from your phone remote or voice demands
• 24-hour timer for easy daily use and smart energy saving
• Low noise operation ensures a peaceful environment
• Self-clean function supports fresher airflow over time
• Removable & washable filters for simple cleaning
• Child lock prevents accidental setting changes
• 4D auto swing offers more even air distribution

Specifications

• Color: White

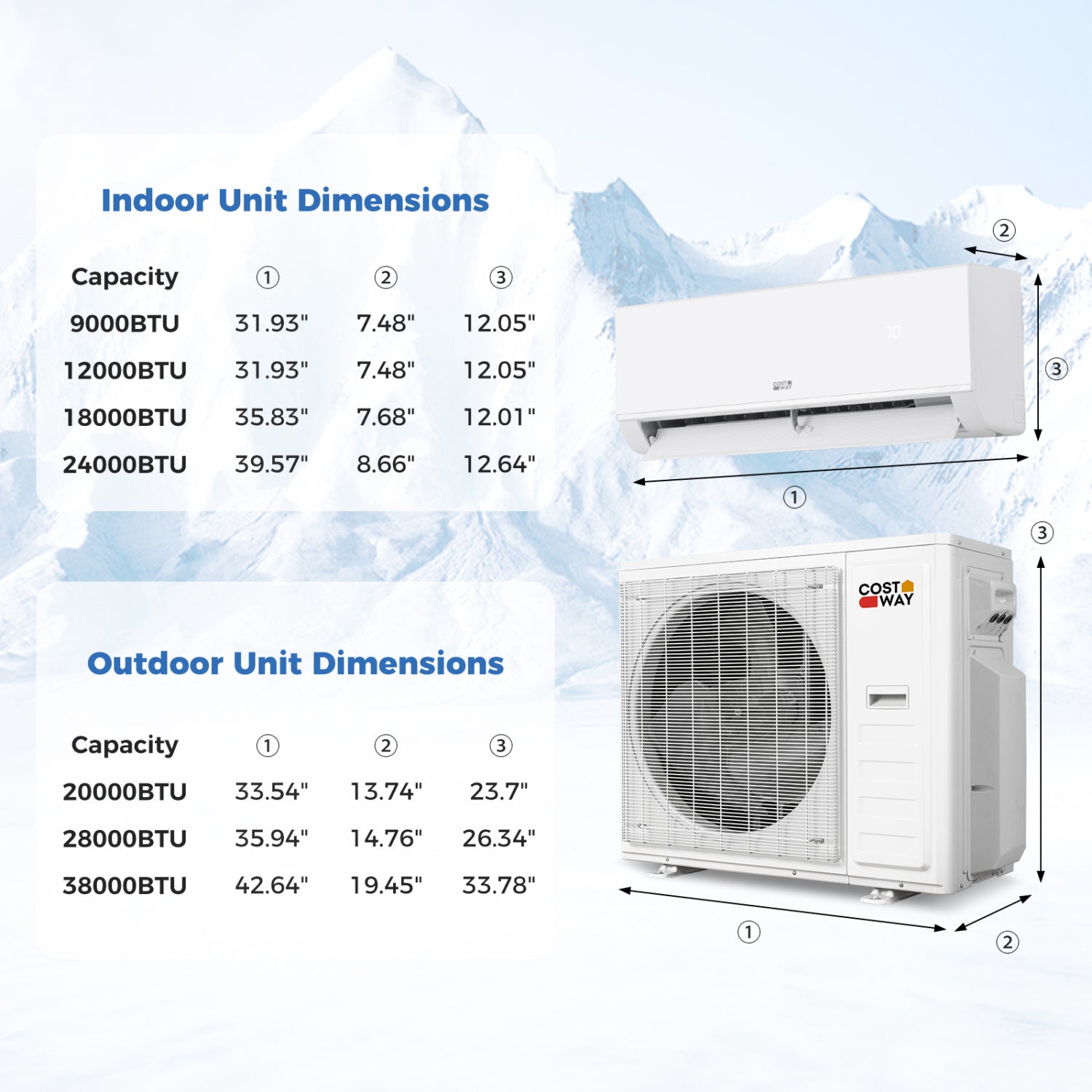

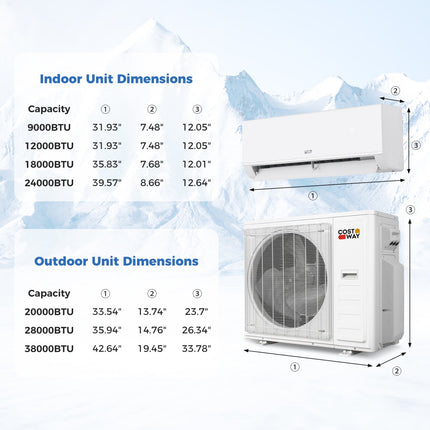

• Material: Cold-rolled Steel Sheet Copper Aluminum Indoor Unit Dimensions . 9K 31.93” x 7.48” x 12.05” 12K 31.93” x 7.48” x 12.05” 18K 35.83" x 7.68" x 12.01" 24K 39.57" x 8.66" x 12.64" Outdoor Unit Dimensions . 20K 33.54" x 13.74" x 23.7" (L x W x H) 28K 35.94" x 14.76" x 26.34" (L x W x H) 38K 42.64" x 19.45" x 33.78" (L x W x H) Multi Zone Combination 3
• Voltage: 208/230V Frequency 60Hz Temperature Setting Range 60℉~88℉ Refrigerant R32 Indoor Unit Noise Level 28 dB Max Remote Control Distance 39.5 ft Coverage Area-9K 450 Sq.Ft Coverage Area-12K 750 Sq.Ft Coverage Area-18K 1250 Sq.Ft Coverage Area-24K 1500 Sq.Ft 24k 1500 Sq.Ft Dehumidification Capacity-9K 66 Pints/Day Dehumidification Capacity-12K 81.2 Pints/Day Dehumidification Capacity-18K 111.6 Pints/Day Dehumidification Capacity-24K 131.9 Pints/Day 24k 131.9 Pints/Day Maximum Air Flow Volume-9K 335 CFM/554 m³/h Maximum Air Flow Volume-12K 342 CFM/554 m³/h Maximum Air Flow Volume-18K 617 CFM/554 m³/h Maximum Air Flow Volume-24K 847 CFM/554 m³/h 24k 847 CFM 20k SEER2 23 28K SEER2 20 38K SEER2 20 20K HSPF2 9.5 28K HSPF2 9.5 38K HSPF2 9.5 Diameter of Liquid Pipe 1/4" Diameter of Gas Pipe-9K 3/8" Diameter of Gas Pipe-12K 3/8" Diameter of Gas Pipe-18K 3/8" Diameter of Gas Pipe-24K 1/2"
• Net Weight: of 38K(Outdoor Unit) 148.8 lbs
• Box Qty: 5
• Is Assembly Required: Yes

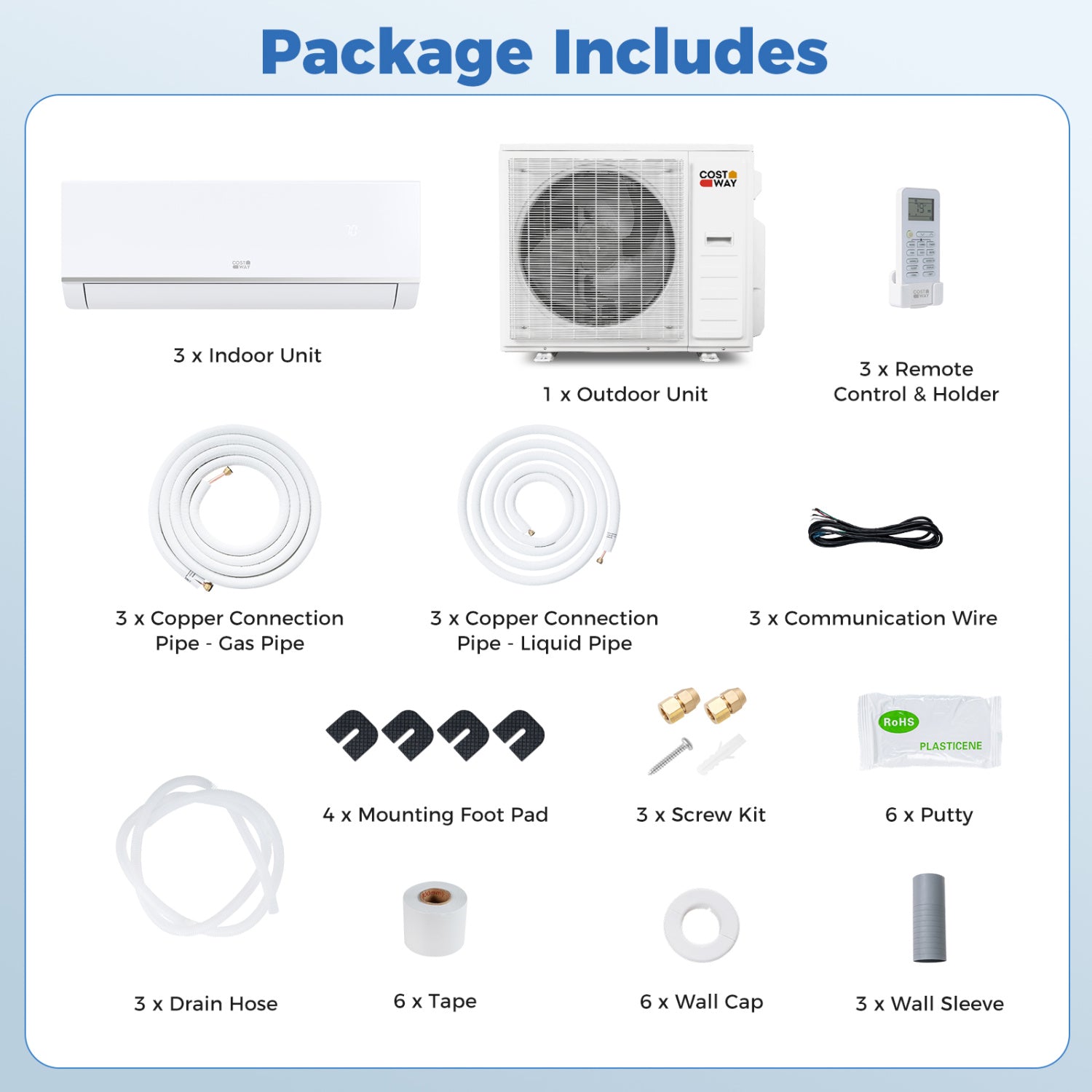

• Package Includes: 1 x Outdoor Unit 3 x Indoor Unit 3 x Copper Connection Pipe - Gas Pipe 3 x Copper Connection Pipe - Liquid Pipe 3 x Communication Wire 3 x Drain Hose 3 x Remote Control & Holder 3 x Wall Sleeve 6 x Wall Cap 6 x Tape 6 x Putty 3 x Screw Kit 4 x Mounting Foot Pad 5 x User Guide
