Overview

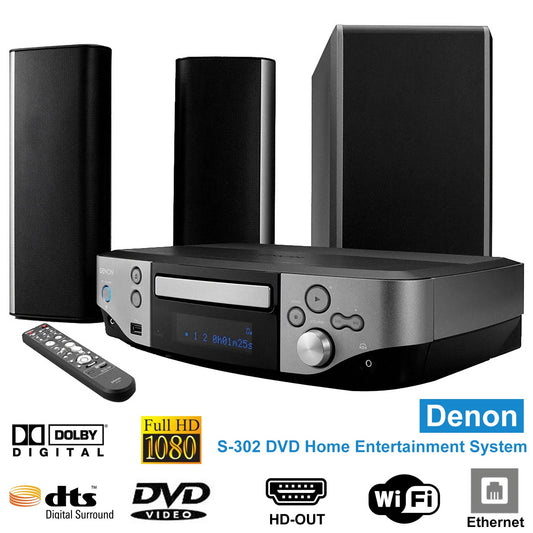

Here is a complete home-theater-in-a-box system, which includes DVD player, 2 Speakers, a Subwoofer, a Tweeter and connecting wires in a single package. It offers an optional solution to all your audio/visual needs, combining great sound from just two stereo speakers and a powered subwoofer. The Denon S-302 DVD Home Entertainment System offers a stunning DVD visual performance, all with far less clutter. Incredibly Well! Moreover, it's designed with a visual flare that allows it to fit seamlessly into any home decor.
Features
*Powerful Performance: The quality speakers and subwoofer with 100W rated output, deliver powerfull clear 360° surround sound ensure that your viewing experience sounds as good as it looks. What's more, the unit supports Dolby Digital/DTS Decoding with Dolby Virtual Speaker technology, whcih delivers an intense, cinema-like surround sound, even from stereo signals.
*Powerful and Dynamic Sound Reproduction: Featured with Audyssey Dynamic EQ, and Spatial EQ as well as Bass XT technologies, which make powerful and dynamic sound even with its compact speakers and subwoofer. AL24 processing for more natural and clear sounds. Matching speakers tuned with European speaker designer. Dual 4" (10.2 cm) mid-bass drivers and 1" (2.5 cm) soft dome tweeter speakers.
*Full HD 1080P Resolution: The powerful unit delivers high quality sound from two channel speakers and a compact subwoofer, along with video scaling to 1080p so your picture comes in crystal clear.
*Ethernet or WiFi Certified: This unit supoorts Ethernet or WiFi IEEE 802.11 b and g connection. Supports network audio and photo playback,and supports playback music files from PC or DLNA server and over 7000 Internet radio stations playback. Also supports iPod audio, photo and video playback (optional ASD-1R/3N/3W dock, or direct connect cable AK-P100).
*Multiple Media Formats Supported: Supports playing your favorite DVD-Video / VCD / CD-DA / CD-R / RW / DVD-R / RW / DVD+R/RW, playing AAC / WMA / MP3 / FLAC / WAV audio files and playing JPEG photo slideshow. Also supports mass USB storage support for audio and photo files.
Main Highlights:
*HDTV output with 1080p scaling.
*Higher quality video powered by DCDi Faroudja engine.
*Analog video to HDTV conversion. All connected analog video signals are converted to an HDTV signal.
*Wi-Fi 802.11b/g Certified, DLNA Certified, Dedicated for iPod In
*216MHz/12-bit video encoder with NSV technology.
*Denon original high quality drive mechanism for stable DVD/CD playback
*Newly developed user interface for easy operation, setup and digital media browsing.
*Album art support (for iPod/network/USB).
*Title text (for iPod/network/USB).
*Multi-language supported.
*TV, cable and set-top box pre-memory remote.
*Simple key layout.
Specifications
Product Type: DVD Home Entertainment System
DVD System: NTSC/PAL
Playback: DVD-Video, VCD, CD-DA, CD-R/RW, DVD-R/RW, DVD+R/RW
Audio:
Output: Rated Power Output: 50W + 50W (4 ohms)
Input Sensitivity: Input Sensitivity/Input Impedance: 100 mV/47 kΩ/ohms
Signal to Noise Ratio: 92 dB (Stereo Mode, Direct Mode: On)
Speaker:
Type: 2 Way 3 Speakers, Closed Box/Low-Leakage-Flux
Woofer: 3.1" (8 cm) Cone Bass-Mid x 2
Tweeter: 1" (2.5 cm) High Range x 1
Magnetic Shield: Yes
Dimensions: 5.2 x 13.2 x 3" (131 x 335 x 76mm)
Weight: 4.9 lb. (2kg)
Subwoofer Output:
Type: Reflex Box, Low-Leakage-Flux, Built-In Amplifier
Speaker: 6.3" (16 cm) Cone x 1
Power: 100W
Magnetic Shield: Yes
Dimensions Including Feet: 8.3 x 14.9 x 16" (212 x 378 x 406mm)
Weight Including Base (S-302): 24.7 lb. (11.2kg)
Input Interface: 1 x Component, 2 x S-Video, 2 x Composite, 3 x Analog Audio, 1 x Digital Optical, 1 x Digital Coaxial, 1x WiFi, 1 x USB, 1 x iPod Ready, 1 x Dock Control
Output Interface: 1 x HDMI, 1 x Component, 1 x S-Video, 1 x Composite, 1 x Digital Optical,
Control: 1 x RS-232C, 1 x Ethernet
Power Requirement: AC 120V, 60Hz
Power Consumption: 78W (At Standby: Approximately 0.3W)
Used frequency range: 2,412 MHz ~ 2,462 MH
No. of channels:
Conforming to IEEE 802.11b : 13ch (DS-SS) (Of which 1 channel used)
Conforming to IEEE 802.11g : 13ch (OFDM) (Of which 1 channel used)
Package Size: 23 ｘ 19 ｘ 22 Inches
Package Weight: 56 lbs
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See www.P65Warnings.ca.gov.
Package Contents
• Remote Control
• Power supply cord
• D-SUB25P system cable
• Speaker cables (x2)
• Video cable
• AM loop antenna
• FM indoor antenna

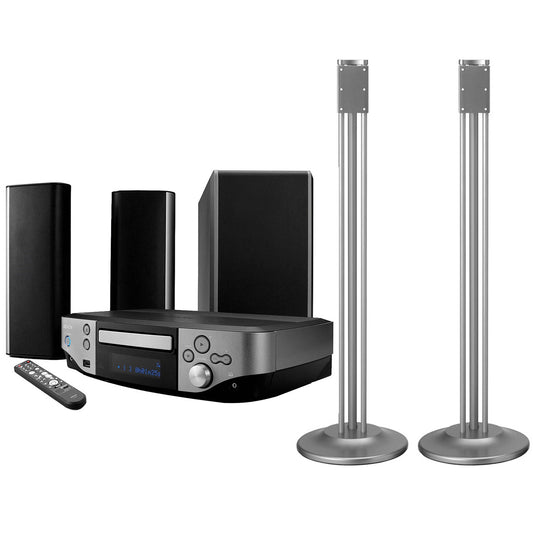

• Floor Speaker stands (x2)
• Wall brackets (x2)
• Screws (x4)
• Hexagonal wrench.
• Rod antenna for wireless LAN
• Anti slip pads
• Operating Instructions (with Quick Setup sheet)
• DENON Warranty
